Uhlobo
I-SB203
I-UC Series Bearrings ibhekisa okujwayelekile, okusetshenziswe kabanzi I-Pillew block ibhola ephethe amayunithi ngemikhono ye-adaptha. Emgogodleni wazo kungukuthwala ibhola elijulile eliqukethe a ububanzi obungaphandle obuhlukile (i-SPB) Yakhelwe ukulingana nokufanisa okugcwele kwezindlu zensimbi eziphonsayo. Ukunamathela ku Ubukhulu beMetric, lolu chungechunge luthuthuke ngokuqondile ngezicelo zezimboni ezifuna umthamo ophezulu womthwalo, ukufakwa okuqondile, nokusebenza okungenakuthenjelwa.
I-UC Series Beary
| Isethulo | I-SB203 | |
| Ububanzi obukhulu | d | 17 mm |
| Ngaphandle kobubanzi | D | 40 mm |
| Ububanzi obuvunayo obufanele | B | 22 mm |
| Ububanzi bendandatho yangaphandle | C | 12 mm |
| Maphakathi nokufika kusuka ekugcineni | s | 6 mm |
| Ibanga kusuka kokonga kobuso bedivayisi esikhungweni se-Raceway | s1 | 16 mm |
| Setha isikulufa | d | M5x0.8 |
| Ibanga kusuka kobuso behlangolweni kuya esikhungweni sentambo | G | 4.5 mm |
| Isikhungo sebanga noma esikhungweni se Indawo yokuhlanza | F | 3.4 mm |
| Isilinganiso somthwalo osisekelo esinamandla | C | 5.8 kno |
| Isilinganiso somthwalo esiyisisekelo esivamile | C0 | 2.8 kno |
| Ukuthwala okuningi | 0.09 kg | |

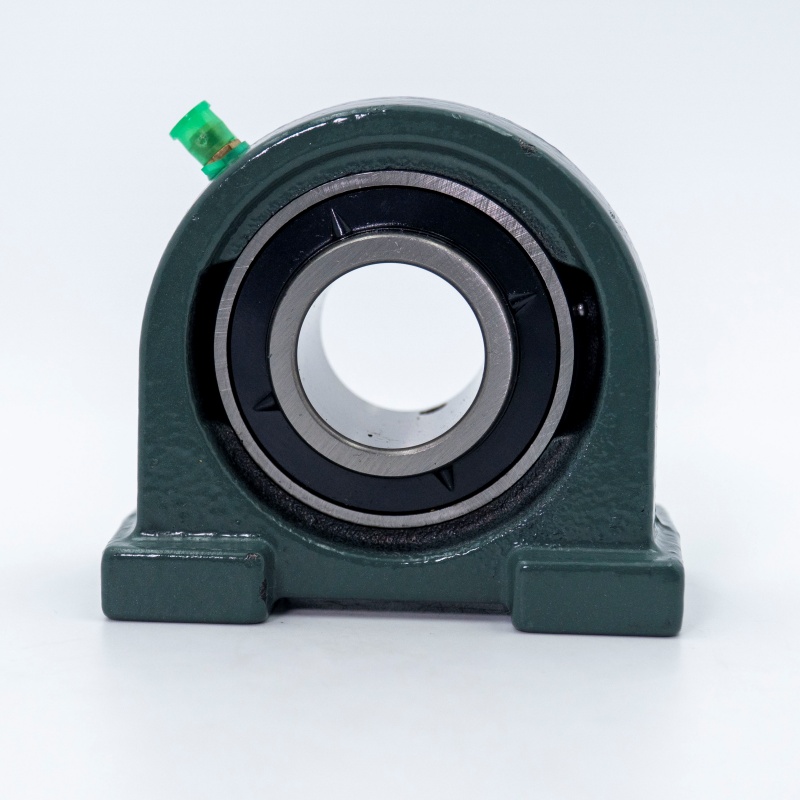

Ukwakheka kwe-UC Series Bearings
Iyunithi ejwayelekile ye-UC ephethe inezakhi ezilandelayo ezilandelayo:
- I-Pillow Block Houseng:Imvamisa eyenziwe ngensimbi empunga yensimbi noma i-iron yensimbi empunga (isb.
- I-Outer spherical deep groove ibhola ejulile:I-Bearing inendandatho yangaphakathi eklanyelwe ukulingana emgodini ojwayelekile we-cylindrical (e.g., ukubekezelela H7). Indandatho yayo yangaphandle ifaka a indawo yangaphandle eyi-spherical lezi zihlalo ngaphakathi kwezindlu eziyindilinga zezindlu.
- Ukuhlelwa kokubekwa uphawu:Ifakwe uphawu ezinhlangothini zombili izinhlangothi (imvamisa njenge-rubber njenge-nbr noma i-fkm) ukuvikela ngempumelelo ukungena ngempumelelo kokungcola, ukungcola kanye nomswakama ngenkathi kugcina i-lubricant yangaphakathi.
- Idivayisi yokukhiya:Ngokuyinhloko isebenzisa i I-Adapter Sleeve (uhlobo lwe-eccentric noma lokuhoxisa) oluhlanganiswe ne-lock nati ne-washer. Le ndlela eyingqayizivele ivumela ukubizwa okuvikelwe ngokuqinile emgodini kusetshenziswa ukungezwani, lula kakhulu ukufakwa kwezinqubo nezinqubo zehla. .
Izici ezibalulekile ze-UC Series Bearnings
- Amandla okuvumelanisa:I-spherical fit phakathi kwendandatho yangaphandle kanye nezindlu kwavumela ukubizwa ukuthi kuhlaluleke I-SHAFT SAFT EXATHINTMENTY (Ngokuvamile kuze kube ± 3 °), inxephezelo amaphutha wokufaka noma i-Shaft Deflection.
- Ukufakwa okulula nokulungisa:Idizayini yangaphambi kokuqoqeka, ehlanganiswe nohlelo lokukhiya lwe-Adapter Sleeve, inika amandla ngokushesha okukhulu futhi mahhala-mahhala Ukubeka / kwehla ku-Cylindrical Shaft, ukunciphisa izindleko zokuphumula kanye nezindleko zokugcina.
- Ukubekwa uphawu okuphakeme:Izingolwane ezijwayelekile zinikeza isivikelo esihle kakhulu emazweni anokhahlo, ukunweba impilo.
- Umthamo wokulayisha okuqinile:Izindlu zensimbi eziqinile eziqinile kanye nokwakhiwa kwebhola elijulile lokuthwala ibhola lihlinzeka ngokuhle umthamo we-radial umthwalo futhi okulinganiselayo Amandla we-Axial Load.
- Ukuhambisana okubanzi nokushintshana:Kwenziwe amazinga we-Metric akwa-ISO (), uqinisekise ukushintshwa kokubuyiselwa kanye nokuthambisa kwezingxenye zomhlaba wonke.
Izicelo ze-UC Series Bearnings
Ngenxa yokuqina kwazo, ukusebenziseka kalula, nokusebenza okuthembekile, amabhere e-UC atholakala ezinhlotsheni eziningi zezimboni kanye nezicelo:
- Imishini yezolimo (ogandaganda, abavuni, abatshali abatshalisiwe)
- Ukudlulisela imishini (amabhande okuhambisa, ama-roller ukuhambisa)
- Ukuphefumula kanye nama-HVAC Systems (Abalandeli)
- Imishini yokuphatha impahla
- Imishini yokwakha
- Imigqa yokudla yokudla neziphuzo
- Imishini yezindwangu
- Ama-General Industrial Drive (Motors, Gearbox, ama-pulleys)
Ukukhetha i-UC Series Berings kusho ukukhetha Ukwethembeka, ukusebenza kwezindleko nokusebenza kahle.
