Chikamu

23034 MBW33

Iyo spherical roller inotakura injini ine chinjiniya inofamba-famba yakagadzirirwa kukurira mukudaidzira mumamiriro ekushanda. Infining yayo inzvimbo ndeye Kuzvisarudzira kugona. Izvo zvinongozvitsamwisa zvisizvo pakati pekushaira uye pekugara, zvinokonzerwa nekukonzeresa kukanganisa, shaft deflection, kana hwaro hwekugadzirisa (kazhinji kusvika 1.5 ° - 3 °). Uku kugona kwakasiyana kunovaita iyo yakakodzera mhinduro yezvekushandisa zvinosanganisira mitoro inorema, kuvhunduka mitoro, uye mamiriro ezvinhu uko kuchinjika hakuna zvadzingadzivisiki.

Tumira Chikumbiro

Spherical roller kutakura

Iso	23034 MBW33
Kukanda	3003134 H
Bore diameter	d	170 mm
Kunze kweDhipatimendi	D	260 mm
Upamhi	B	67 mm
Basic Dynamic Mutoro Ratidziro	C	365 Kn
Basic Static Rax Rating	C0	648 Kn
Kunongedzera kumhanya		700 R / min
Kudzikisira kumhanya		500 R / min
Misa kutakura	13.29 kg

Dhizaini rekugadzira

Iko kubereka kune zvikamu zvina zvakakosha zvikamu:

Rombo remukati:Inoratidzira maviri mujaho nemabvu embabvu dzoller nhungamiro.
ROPE RING:Ine conceve yechijisiki yechijaya majawa. Iyo yepakati ye curvature yeiyi mujaho wemajaho wedzinza neyekubereka nzvimbo, ichigonesa kuzvimiririra.
Rollers:Barrel-yakaumbwa
Cage:Zvinzvimbo uye kupatsanura iyo rollers, kuderedza kupokana uye kutungamira kutenderera. Cage dzinowanzogadzirwa nesimbi yakamanikidzwa kana yendarira. Iyo inobereka dzimba mbiri mitsara yeanodzora kune yakakwirira mutoro kugona.

Key hunhu

Superior Kuzvisarudzira:Inoshivirira yakakosha SAPT Misikiya, ichidzivirira kutakura kubva kumucheto kushushikana uye kutadza kusati kwatadza, kuwedzera kwebasa rebasa.
Yakavharirwa mutoro wekukwanisa:Iyo barrel rollers inochengetedza nzvimbo yakakura yekuonana neyenyanzvi yekunze, inogonesa kwazvo Radial Radial mutoro kugona uye zvine mwero bidirectional axial kuridza kubata.
Robusness & Kuvhundutsa Kuramba:Kuvakwa kwakasimba kunobata mitoro inorema, kukanganisa mitoro, uye kutambudzika zvinobudirira.
Yakagadziriswa mukati mejometry:Inoita kuti ishandiswe roller kutungamira, kunyangwe kugoverwa kushushikana, kupokana kwakaderera, uye kunotonhorera kuchimhanya tembiricha.
Kureruka kwekugadzirisa (tapered bore dhizaini):Shanduro dzine taped bore uye adapter nondo dzinogonesa kukwidza kupusa uye kusanganisa pamasuru emvura isina mafudzi pasina mafudzi.

Chaizvoizvo Zvikumbiro

Spherical roller fani ndeyekubata mashandiro emazhinji maindasitiri anorema uye anodikanwa nharaunda, kusanganisira:

Anorema michina: Mining Zvishandiso (Crushers, Mamirimita), metallurgical zvidyarwa (kudzikisira mills), kugadzirwa kwemasimende (mbichana, kills).
Kubata zvinhu: Vibrates vibrates, ma clinsor akakura, bhandi rinoshamisa.
Chizvarwa cheMasimba: Mhepo turbine gearboxes, hydroelectric zvirimwa, gear inoderedza.
Mamwe zvikamu: Pepa michina, marine propulsion masisitimu, njanji yebhokisi

Nhau Dzakamboitika

23034 CAW33

Nhau Dzinotevera

NJ406

Taura nesu

Zvinoenderana Zvigadzirwa

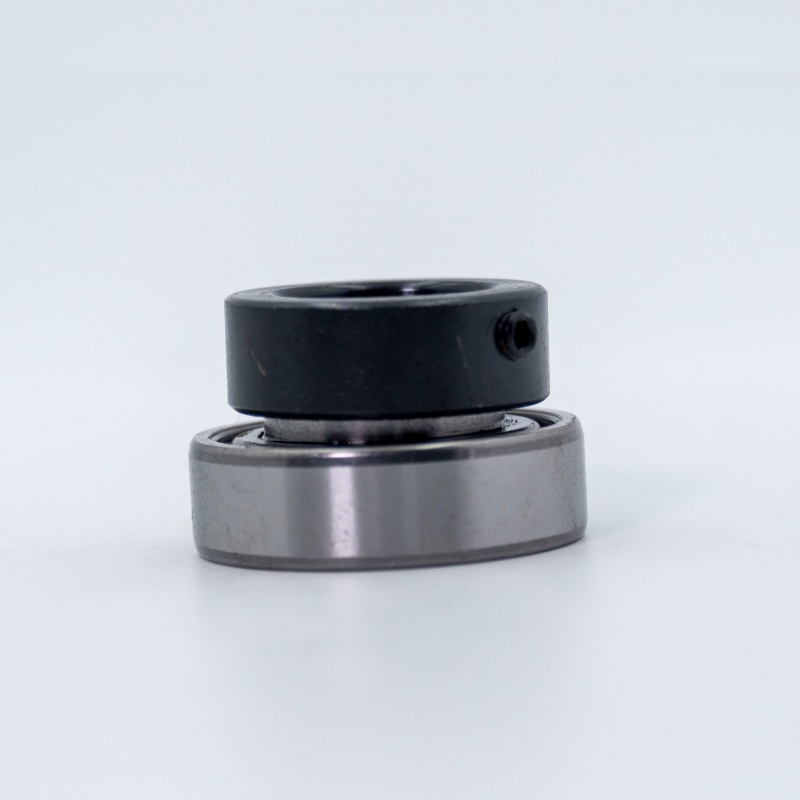

Sa206-17
