Category
K7X10X8

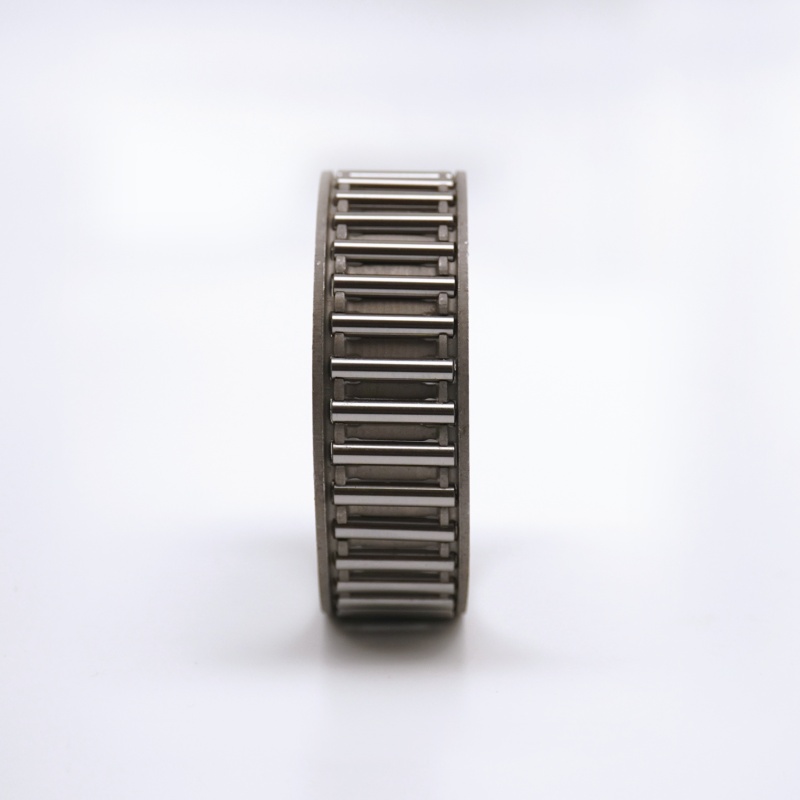

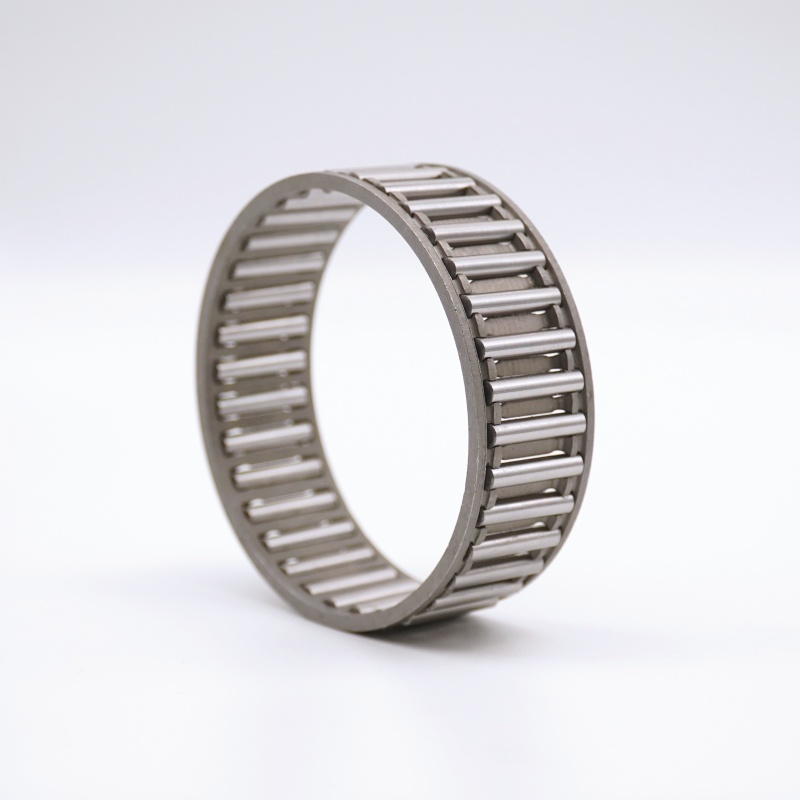

Needle roller bearings utilize cylindrical rollers with a length-to-diameter ratio exceeding 4:1. This “needle-like” geometry enables exceptional radial load capacity within extremely compact cross-sections, providing superior space efficiency compared to ball bearings of equivalent dimensions.
Needle Roller Bearings
| ISO | K7X10X8 | |
| Raceway diameter inner ring | Fw | 7 mm |
| Outside diameter | Ew | 10 mm |
| Width | Bc | 8 mm |
| Basic dynamic load rating | C | 1.37 kN |
| Basic static load rating | C0 | 1.27 kN |
| Limiting speed | 16300 r/min | |
| Mass bearing | 0.0017 kg | |
Structural Breakdown
Key components include:
- Outer Ring: Typically with raceway (cageless types omit outer ring)
- Needle Rollers: Precision-ground rollers transmitting load via line contact
- Cage: Brass/steel/polymer material spacing rollers (cageless types exclude cage)
- Inner Ring: Optional component (e.g., NA-type with inner ring, RNA-type without)
Classification System
- By Design: Full complement (high load), caged (high-speed capable)
- By Function: Radial, thrust, combination bearings
- Special Types: Flanged (axial positioning), aligning (misalignment compensation)
Technical Advantages
| Feature | Engineering Benefit |
| Ultra-slim section | Saves 60% radial space |
| High load density | 300% higher capacity vs. balls |
| Shock resistance | Line contact distributes stress |
| Rotation accuracy | ±0.03mm for precision systems |
| Note: Speed limitation varies by cage material |
Industry Applications
- Automotive: Transmissions (e.g., JTEKT NK17/20), connecting rods
- Robotics: Articulated joints (full complement type prevalent)
- Aerospace: APU rotor support bearings
- Medical: CT scanner gantry rotation (MRI-safe versions)
- Construction: Hydraulic pump drives (Timken TOR 47)
Environmental Adaptation
| Condition | Recommended Solution |
| High temperature | Ceramic-coated rollers + special cages |
| Corrosive media | Full stainless steel (SS suffix) |
| Contaminated areas | Double-lip contact seals (2RS) |
| Ultra-high speed | Polymer cages + oil-air lubrication |
Contact Us
Related Products

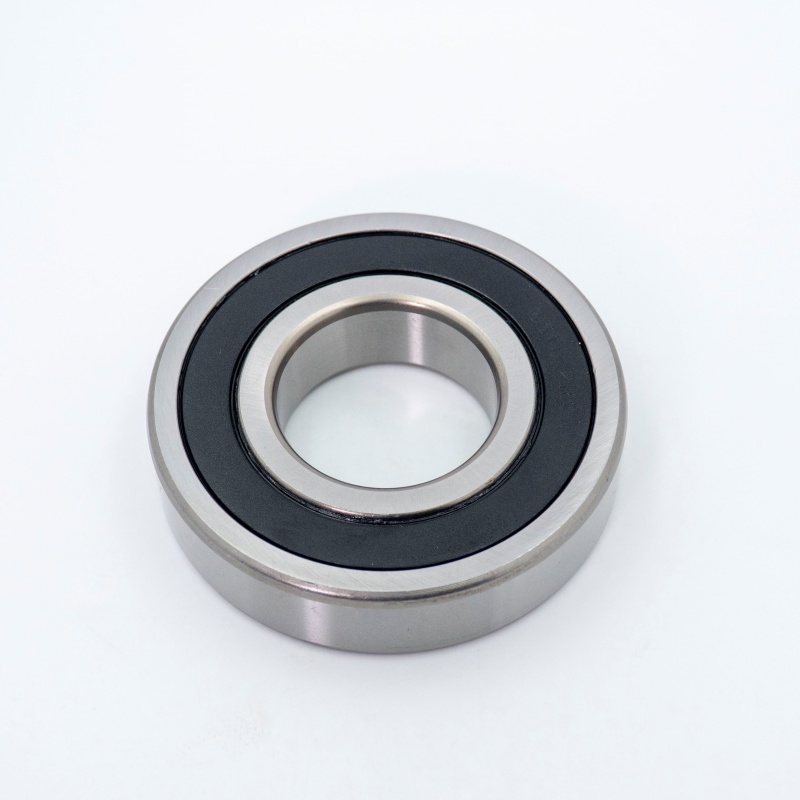

6308 2RS
A Deep Groove Ball Bearing is one of the most widely used types of rolling bearings. It consists of an inner ring, outer ring, steel balls, and a cage (or sealing components). The deep groove raceways on the inner and outer rings allow it to withstand radial loads and limited…

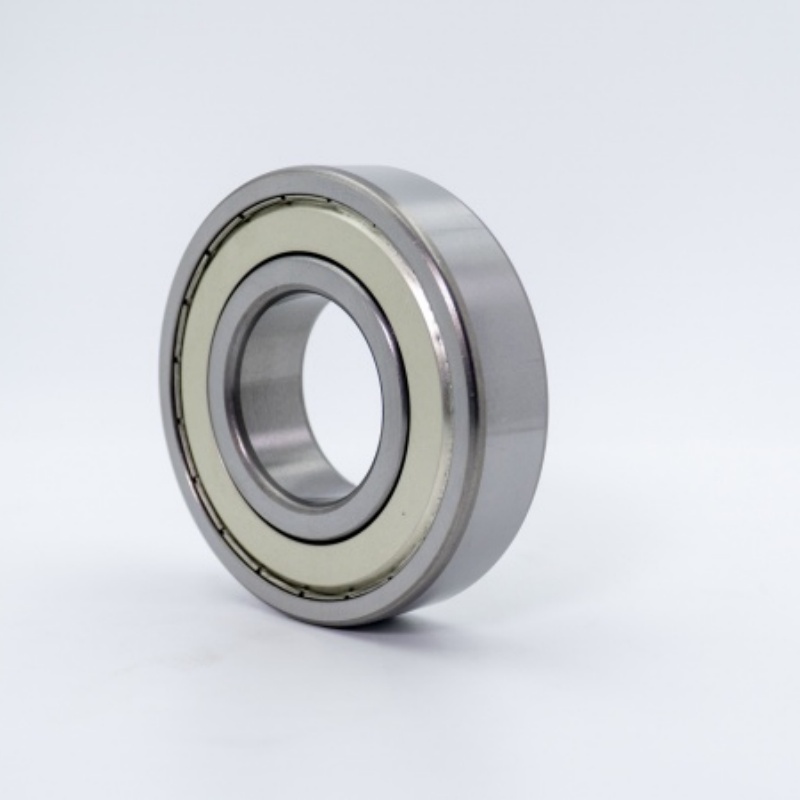

6311 ZZ
A Deep Groove Ball Bearing is one of the most widely used types of rolling bearings. It consists of an inner ring, outer ring, steel balls, and a cage (or sealing components). The deep groove raceways on the inner and outer rings allow it to withstand radial loads and limited…
HK1010
Needle roller bearings utilize cylindrical rollers with a length-to-diameter ratio exceeding 4:1. This “needle-like” geometry enables exceptional radial load capacity within extremely compact cross-sections, providing superior space efficiency compared to ball bearings of equivalent dimensions.
22340 CAW33
A spherical roller bearing is a highly engineered rolling-element bearing designed to excel in demanding operating conditions. Its defining feature is its self-aligning capability. It automatically compensates for misalignment between the shaft and housing, caused by mounting errors, shaft deflection, or foundation settling (typically up to 1.5° – 3°). This…

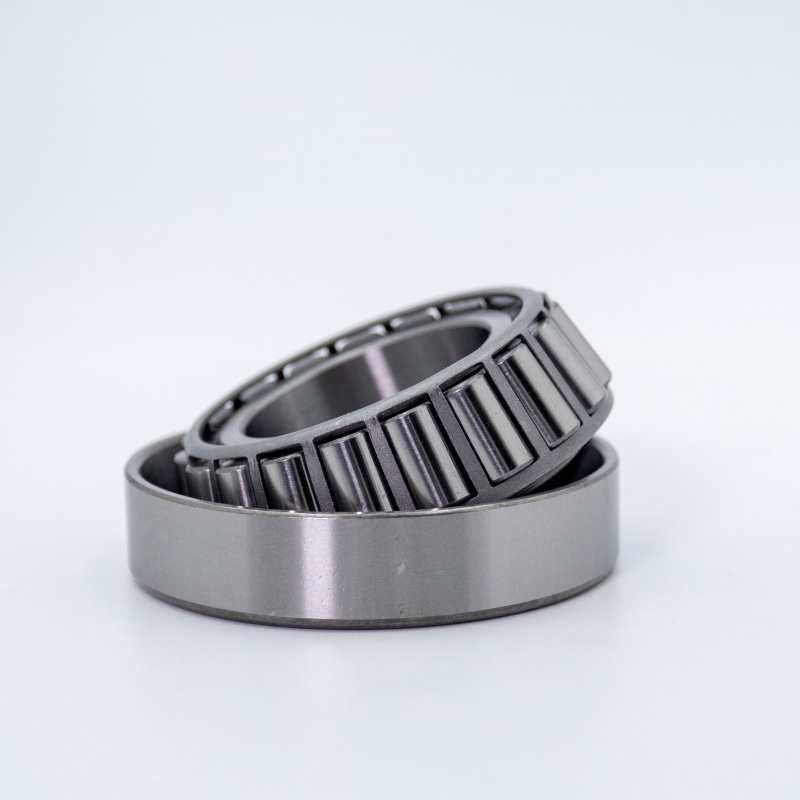

30226
Tapered roller bearing is a precision rolling-element bearing designed to handle combined radial and heavy single-direction axial loads simultaneously. Its namesake conical geometry is key, enabling it to efficiently manage and transfer these combined loads.

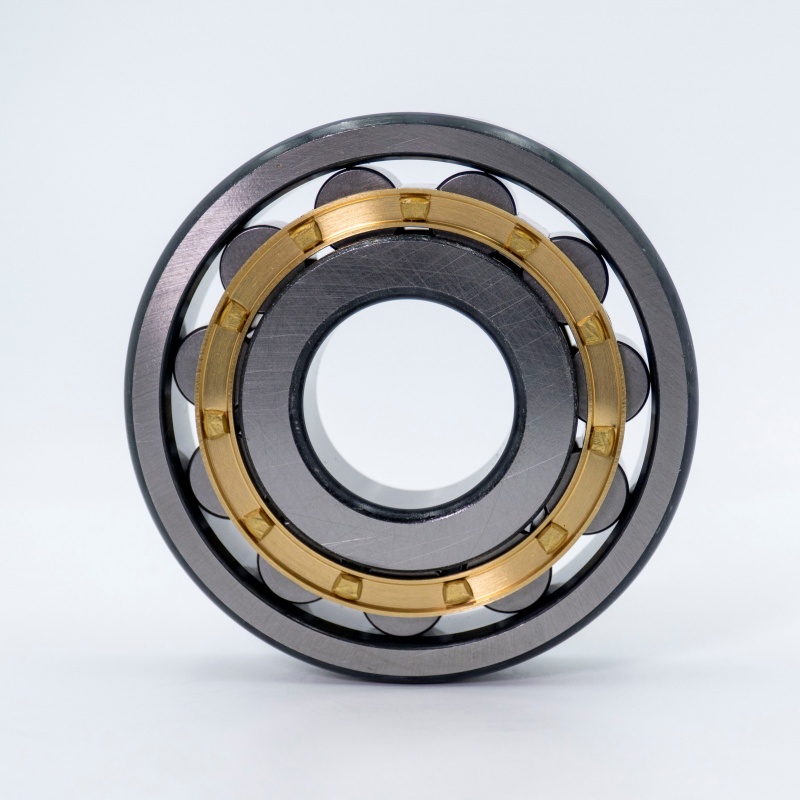

NF315
