51102

Thrust pob bearings yog dov bearings engineered los lis Axial loads tshwj xeeb. Lawv cov qauv tsim muaj a Ncej Washer (Tighing Nplhaib), Lub tsev tshuab ntxhua khaub ncaws (xoob nplhaib xoob), thiab a Pob-tawb los ua ke Nrog grooved raceways, ua kom cov axial quab yuam kis nrog kev sib txhuam tsawg. Tsis haum rau radial loads.

Xa daim ntawv thov

Thrust Pob Cov Kab Mob

ISO	51102
Gost	8102
Kev ntaus qhov taub	d	15 hli
Sab nraud ntawm lub taub	D	28 HLI
Qhov siab	H	9 hli
Cov Kev Ntsuas Cov Khoom Siv Dynamic Yas	C	2.3 kn
Theem Pib Cov Ntsuas Hluav Taws Xob	C0	3.1 kn
Kev ceev ceev		5100 r / min
Lim txav ceev		3800 r / min
Kab Mob Ntau Tiag	0.023 kg

Qauv qauv tsim

Ib ncig: GCR15 cov kabmob hlau tawv tawv rau HRC 58-62, precision-av raceways;
Cov pob: φ3mm-ol50mm cov hlau pob (ISO 3290 qib G10-G20);
Lub nkuaj: Stamped steel / tooj dag lossis polymer pa66-gf25 segmented tawb;
Khi: Z-shield (80 ° C) lossis 2rs roj hmab foob (120 ° C).

Cov Ntsiab Lus Tseem Ceeb

Los ntawm kev sib khi hom:
- Qhib Bearings: Tsis muaj ntsaws ruaj ruaj; Yuav tsum muaj kev tu lubrication.
- Cov thaiv cov kabmob (ZZ / 2Z): Ib leeg lossis ob chav hlau thaiv kom muaj plua plav tiv thaiv (tsis yog roj-nruj).
- Cov Bearings (Rs / 2): Roj hmab ntim rau cov hmoov av / Dej tsis kam thiab roj nplua.
Los ntawm qhov loj me:
- Tej Me Me Bearings: Bege txoj haujlwm <10mm, siv rau hauv cov twj paj nruag.
- Txheem Bearings: Cov loj me me (piv txwv li, 6200 series).
- Loj loj bearings: Rau cov khoom siv muaj zog hnyav.
Cov Hom Tshwj Xeeb:
- Stainless Hlau Bearings: Corrosion-resistant rau cov chaw noo / tshuaj ib puag ncig.
- Ceramic Hybrid Bearings: Tej hub npas rau qhov ntsuas kub thiab los tiv thaiv kev sib nqus.

Muaj Cov Ntawv Thov

Kev ua hauj lwm	Cuab tam	Thauj khoom profile
Automotive	Clutch Tso Tawm, Kis Tau	Poob siab thauj khoom ≤50Kn
Kev tsa tsev	Twj Twj Hydraulic, Excavator Slauj	Zoo li qub thauj mus txog li 300Kn
Lub Zog Loj	Turbine Qhia Vanes, Cua Tw Taub Hau	Cyclic Loads (50,000H Lub Neej)
Hlau	Sib koom ua ke reducers	High-precision tso

Xaiv & Mounting sau ntawv

Corrosion Kuj: Sus440 stainless hlau lossis zinc plating;
Hnyav-Kev Xaiv Txoj Haujlwm: Siv Tapered Cov Menyuam Wrust Bearings(300% muaj peev xwm ntau dua);
Mounting: Ncej Washer yuav tsum yog nias-haum; Kev Kho Vaj Tsua Ntsis E≤0.05 hli.

Cov xov xwm dhau los

51103

Xov Xwm Ntxiv

51101

Tiv Tauj Peb

Lwm Yam Khoom

7306 AC

Angular sib cuag pob bearings (acbbs) yog cov kabmob precision-encantent-enquentely tsim los tswj kev sib xyaw ua ke thiab axial loads, ib txhij. Tsis zoo li qauv sib sib zog nqus groove pob bearings, lawv txuas kev sib cuag cov tub sab sib ze (feem ntau ntawm 15 °), feem ntau nrog rau cov rog radial. Qhov no ...

Nyeem ntxiv 🡥

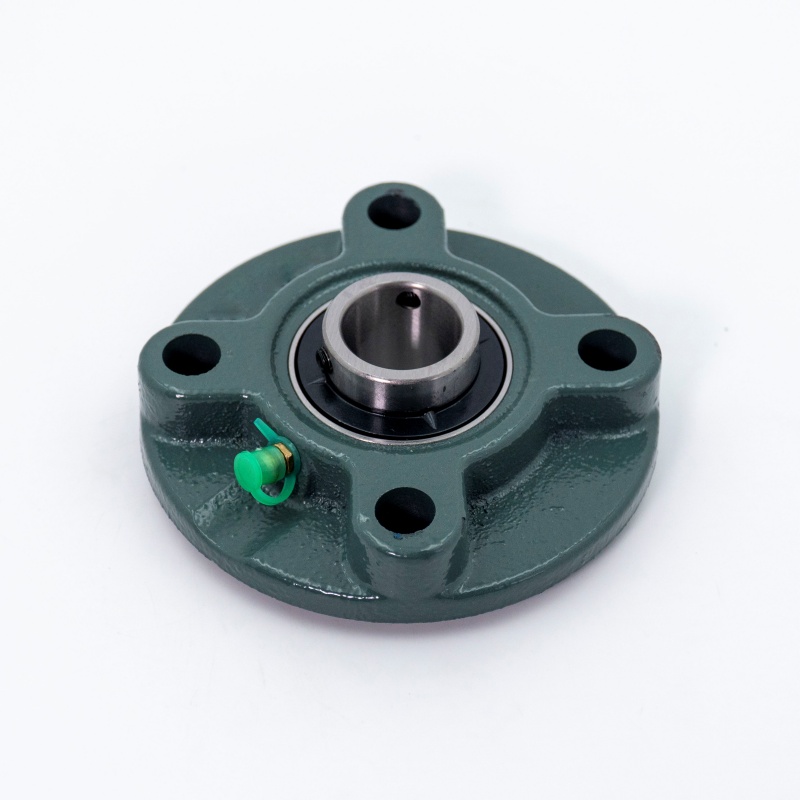

UCFC216-49

UC series bearings xa mus rau cov qauv ua, siv hauv ncoo thaiv cov pob hauv ncoo zais nrog cov tes tsho adapes. Ntawm lawv cov tub ntxhais yog ib qho zuaj zeem muag sib sib zog nqus pob cov kabmob sib xws Adhering rau Metric Qhov Ntev, Cov Series No Yog ...

Nyeem ntxiv 🡥

30236

Tapered Cov Menyuam Yawv yog lub precision dov-caij cov kabmob tau tsim los siv ua ke-kev taw tes axial loads ib txhij. Nws lub npe conical conical geometry yog qhov tseem ceeb, ua kom nws tswj tau zoo thiab hloov cov kev sib xyaw ua ke no.

Nyeem ntxiv 🡥

31306

Nyeem ntxiv 🡥

UCS201-8

Nyeem ntxiv 🡥

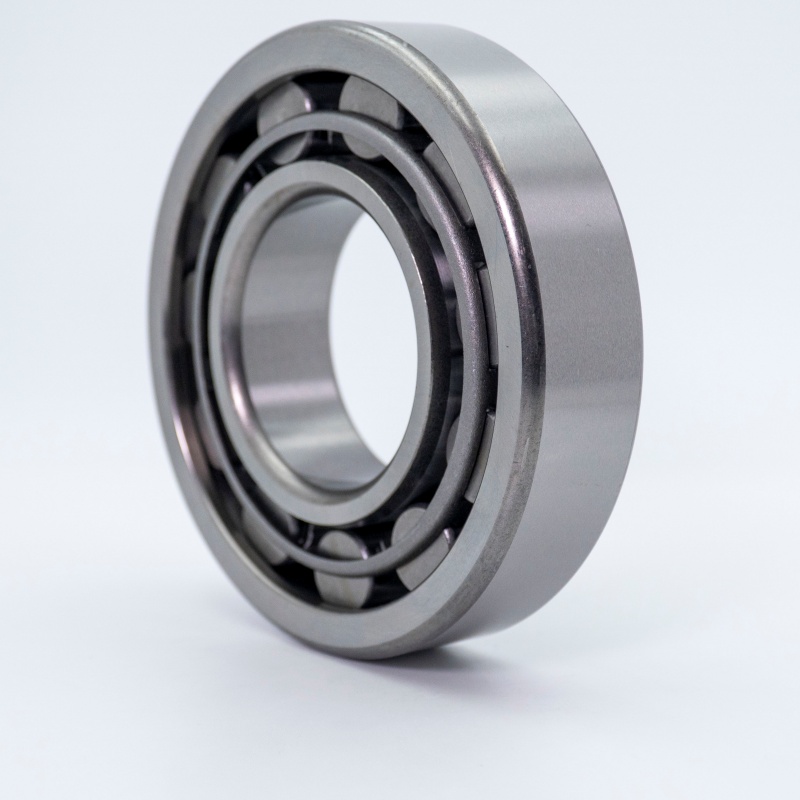

Nu336
